Product Model

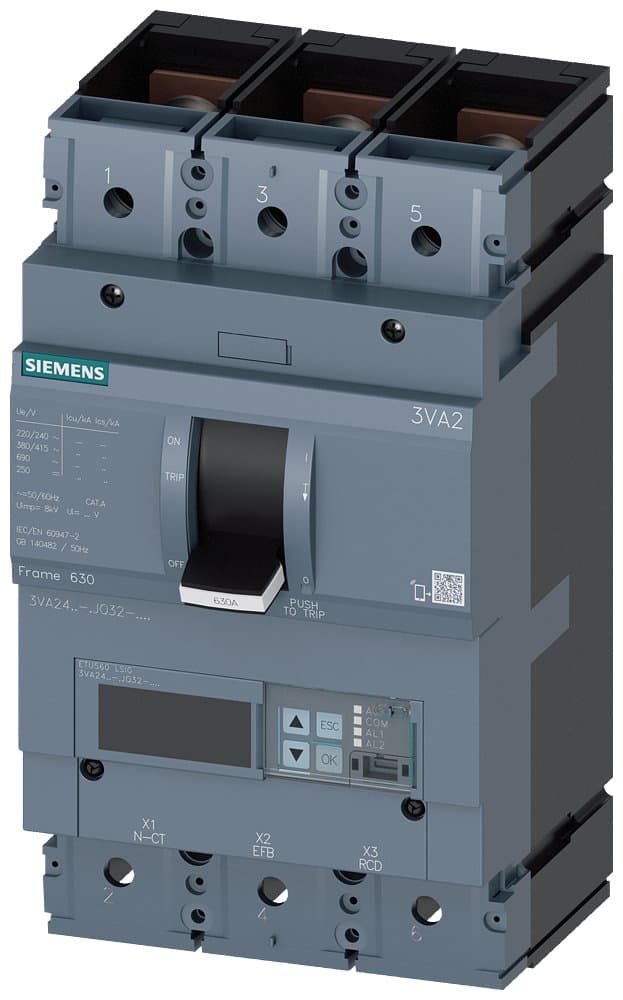

3VA2463-5JQ32-0AA0
Selling Points
- 155kA at 415V for reliable short-circuit protection.
- 2Available in fixed, plug-in, and withdrawable versions for versatile applications.
- 3ETU560 and LSIG ensure comprehensive line protection against overloads and short circuits.
- 4Overload release current setting from 250 to 630A for customizable protection.
- 5Built with a solid-state overcurrent trip unit and IP40 protection for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA2M630 R630 ETU560 F/3P; 3VA2_630 dimensions; Rated Current 630A; Interrupting M:55kA; Trip Unit ETU560; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU560【Electronic Type LSIG+LCD】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
Rated Current In(A): | 630 | Specifications: | 630【400-630A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2463-5JQ32-0AA0 |
Specifications may be subject to change without notice
