Product Model

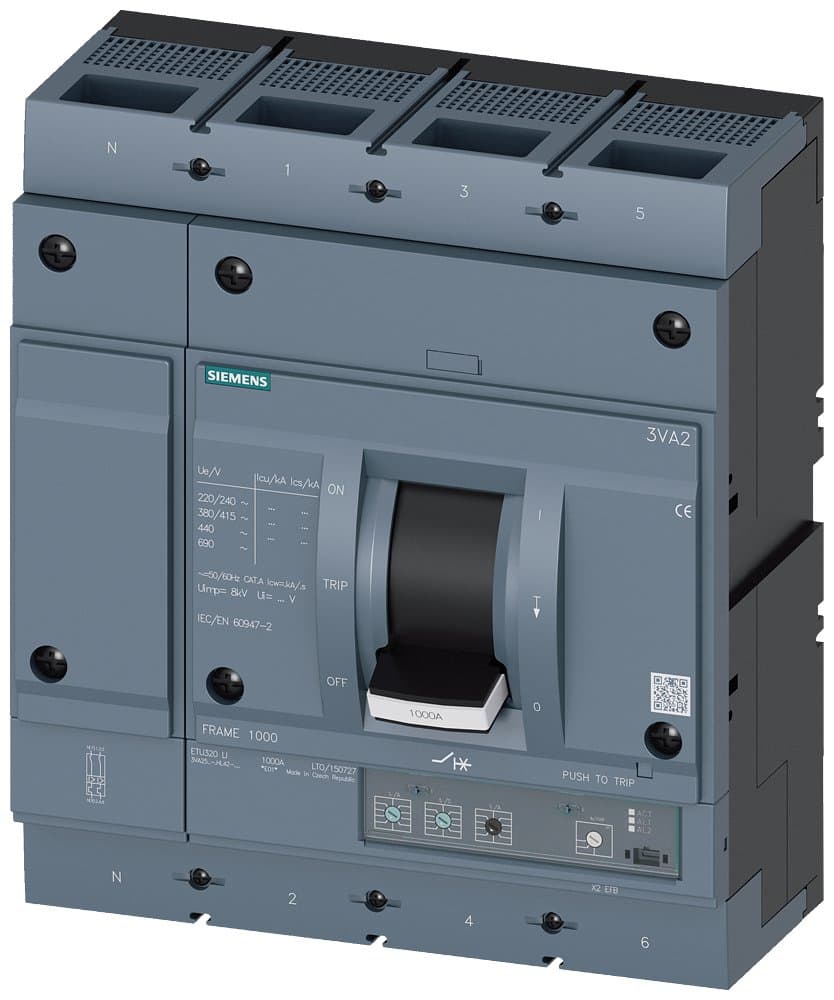

3VA2563-5HL42-0AA0
Selling Points
- 155 kA at 415 V for reliable short-circuit protection.
- 2Suitable for 4-pole applications with 630 A overload protection.
- 3Compatible with AC and DC currents, ideal for three-phase networks.
- 4Includes ETU320 for enhanced functionality and communication.
- 5Compact dimensions with a cover size of 70 mm for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Ics(kA)@690V: | 19 | Icu(kA)@690V: | 25 |
Rated Service Breaking Capacity Ics(kA): @400V or 415V | 55 | Rated Voltage (V): | 415 |
Number of Poles: | 4P | Description | 3VA2M1000 R630 ETU320 F/4P; 3VA2_1000 dimensions; Rated Current 630A; Interrupting Rating M: 55kA; Trip Unit ETU320 |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | ETU320 [Electronic Type LI] |
Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 55 | Interrupting Rating: | M: 55kA |
Rated Current In(A): | 630 | Specification: | 1000 [630-1000A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2563-5HL42-0AA0 |
Specifications may be subject to change without notice
