Product Model

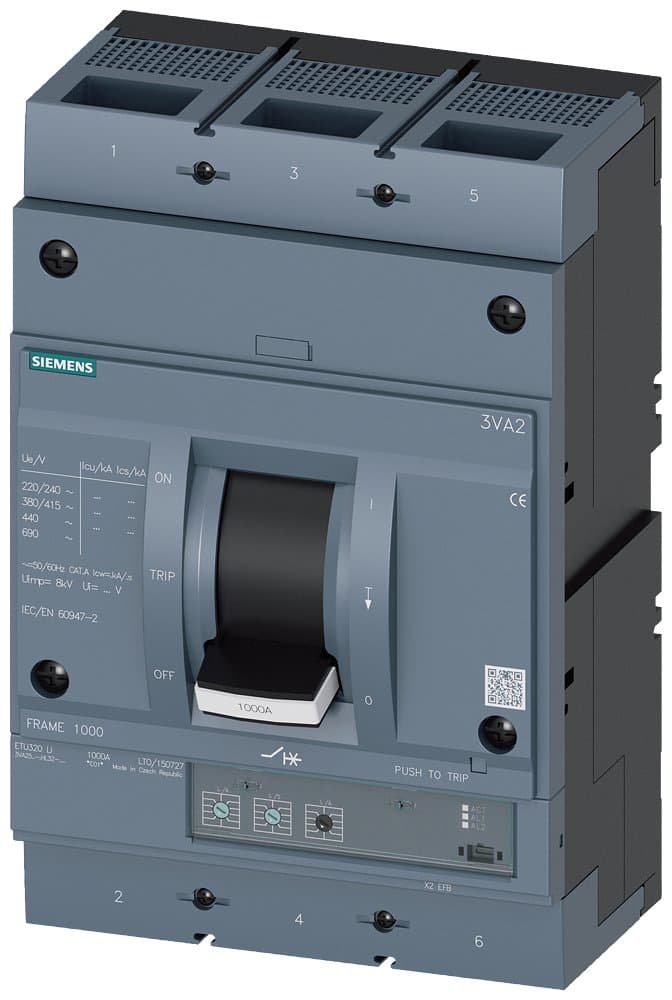

3VA2563-6HL32-0AA0
Selling Points
- 1High breaking capacity of 85 kA at 415 V.
- 2Robust line protection with ETU320.
- 3Overload protection up to 630 A.
- 4IEC Frame 1000 design for reliability.
- 5Suitable for 3-pole applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Ics(kA)@690V: | 19 | Icu(kA)@690V: | 35 |
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 85 | Rated Voltage(V): | 415 |
Number of Poles: | 3P | Description | 3VA2H1000 R630 ETU320 F/3P; 3VA2_1000 Dimensions; Rated Current 630A; Interrupting Rating H:85kA; Trip Unit ETU320 |
Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU320 [Electronic Type LI] |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 85 | Interrupting Rating: | H:85kA |
Rated Current In(A): | 630 | Specification: | 1000 [630-1000A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2563-6HL32-0AA0 |
