Product Model

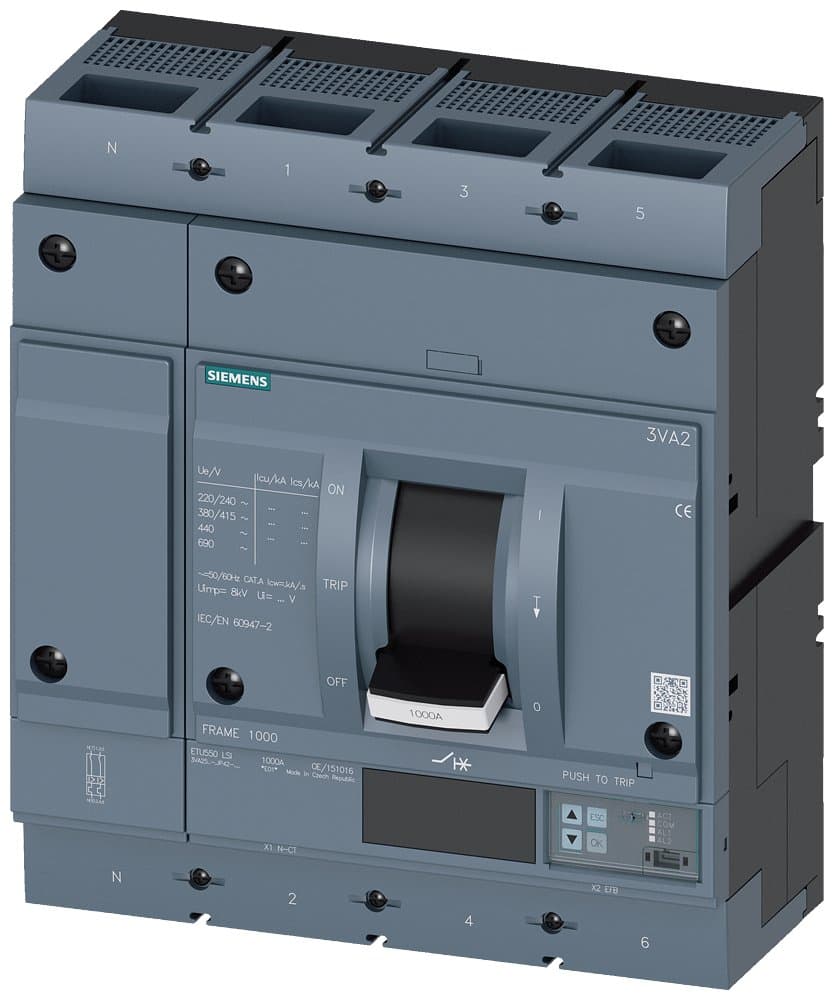

3VA2563-6JP42-0AA0
Selling Points
- 1Offers high breaking capacity up to 85 kA at 415 V for reliable short-circuit protection.
- 2Ensures fast and selective tripping in case of short circuits, minimizing damage to equipment.
- 3Compatible with a wide range of standardized internal and external accessories for easy installation and customization.
- 4Features compact dimensions with a mounting depth of 70 mm and cover size of 45 mm, ideal for space-constrained applications.
- 5Suitable for use in three-phase networks, AC networks, 400 Hz applications, and with DC currents, making it versatile for various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Ics(kA)@690V: | 19 | Icu(kA)@690V: | 35 |
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 85 | Rated Voltage (V): | 415 |
Number of Poles: | 4P | Description | 3VA2H1000 R630 ETU550 F/4P; 3VA2_1000 dimensions; Rated Current 630A; Interrupting Rating H:85kA; Trip Unit ETU550 |
Mounting Method: | F: Fixed | Trip Unit (Reset and select trip unit if not listed) | ETU550 [Electronic LSI + LCD] |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 85 | Interrupting Rating: | H:85kA |
Rated Current In(A): | 630 | Specifications: | 1000 [630-1000A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | EAR99 | AL | N |
Model Number | 3VA2563-6JP42-0AA0 |
