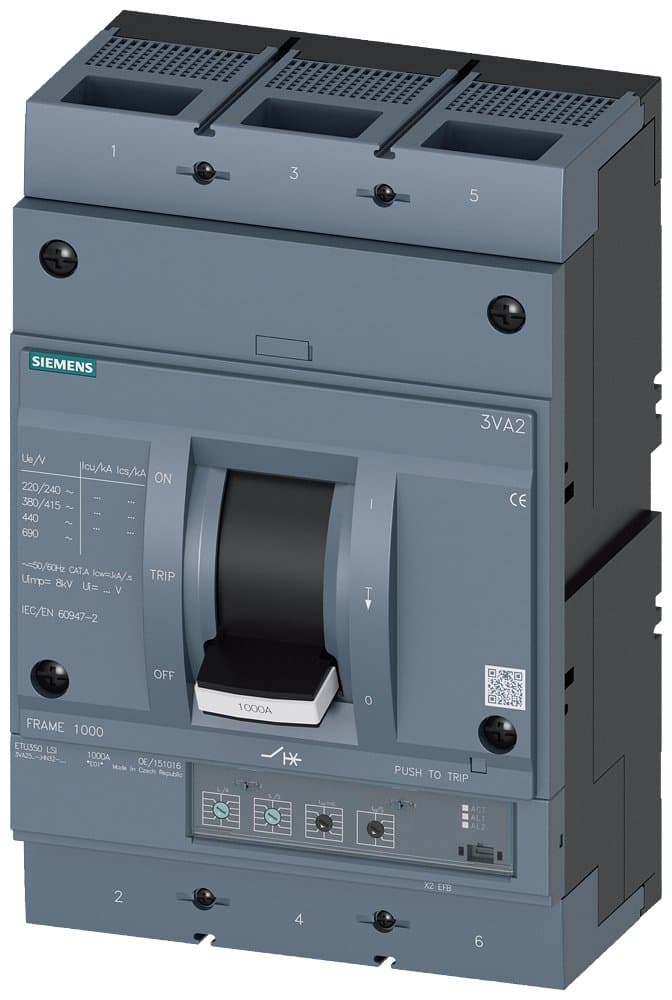

Product Model
3VA2580-6HN32-0AA0
Selling Points
- 1High breaking capacity of 85 kA at 415 V.
- 2Advanced line protection with ETU350 and LSI.
- 3Overload protection up to 800 A.
- 4Suitable for 3-phase networks and AC applications.
- 5Compact design with standardized installation procedures.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Ics(kA)@690V: | 19 | Icu(kA)@690V: | 35 |
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 85 | Rated Voltage(V): | 415 |
Number of Poles: | 3P | Description | 3VA2H1000 R800 ETU350 F/3P; 3VA2_1000 dimensions; Rated Current 800A; Interrupting Rating H:85kA; Trip Unit ETU350 |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU350 [Electronic LSI] |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 85 | Interrupting Rating: | H:85kA |
Rated Current In(A): | 800 | Specifications: | 1000 [630-1000A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2580-6HN32-0AA0 |
Specifications may be subject to change without notice
