Product Model

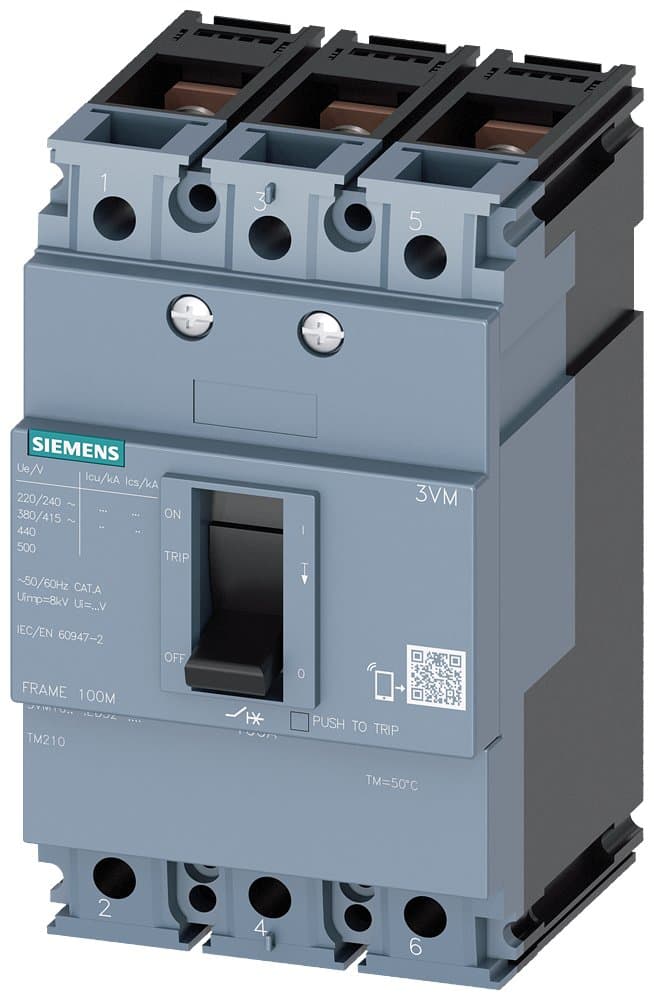

3VM1080-2ED32-0AA0
Selling Points
- 1Class B breaking capacity with Icu=16kA @ 415V for robust electrical protection.
- 2Equipped with TM210 and FTFM for comprehensive line protection.
- 3In=80A overload protection ensures safe operation under heavy loads.
- 4Meets IEC standards in a compact frame size for efficient installation.
- 5Designed for 3-pole applications, providing consistent and reliable electrical protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 8 | Rated Voltage(V): | 415 |
Number of Poles: | 3P | Description | 3VM1B100 R80 TM210 F/3P; Size 100; Rated Current 80A; Interrupting Rating B:16kA; Trip Unit TM210; |
Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM210 [LI fixed, line protection] |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 16 | Interrupting Rating: | B:16kA |
Rated Current In(A): | 80 | Specifications: | 100 [16-100A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3VM1080-2ED32-0AA0 |
Specifications may be subject to change without notice
