Product Model

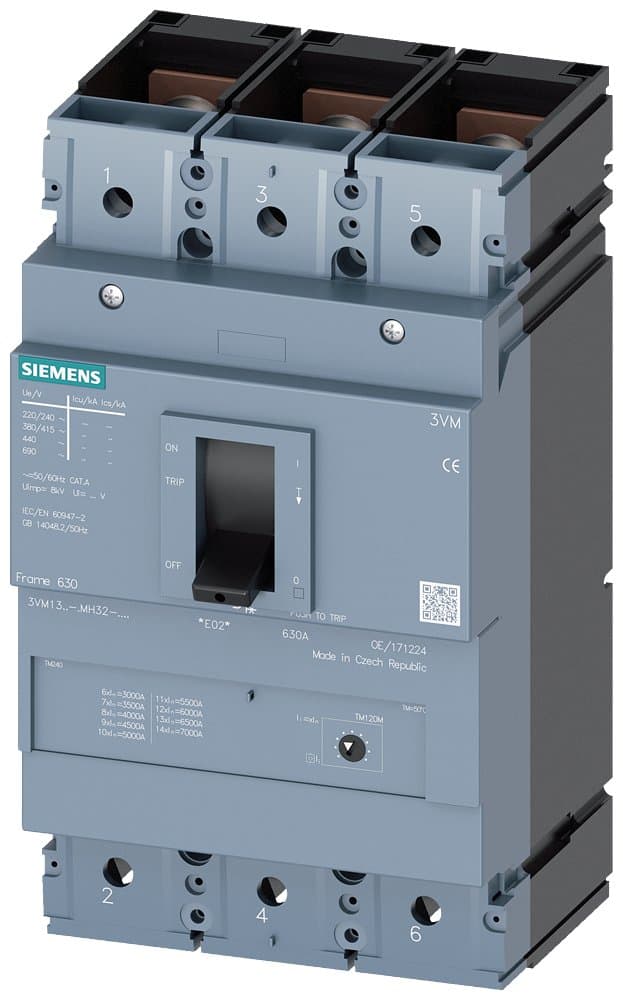

3VM1332-5MH32-0AA0
Selling Points
- 1Compact design for easy installation and space-saving.
- 2Modular accessories for diverse functions and quick installation.
- 3Robust thermal-magnetic trip units for reliable overload and short-circuit protection.
- 4Available in 3 and 4-pole versions with breaking capacities up to 55 kA.
- 5Meets IEC/EN 60947-1, 60947-2, and other international safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 41 | Rated Voltage(V): | 415 |
Number of Poles: | 3P | Description | 3VM1M400 R320 TM120M F/3P; Size 400; Rated Current 320A; Interrupting M:55kA; Trip Unit TM120M; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM120M [Single Magnetic (I adjustable)] |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
Rated Current In(A): | 320 | Specifications: | 400 [250-400A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VM1332-5MH32-0AA0 |
Specifications may be subject to change without notice
