Product Model

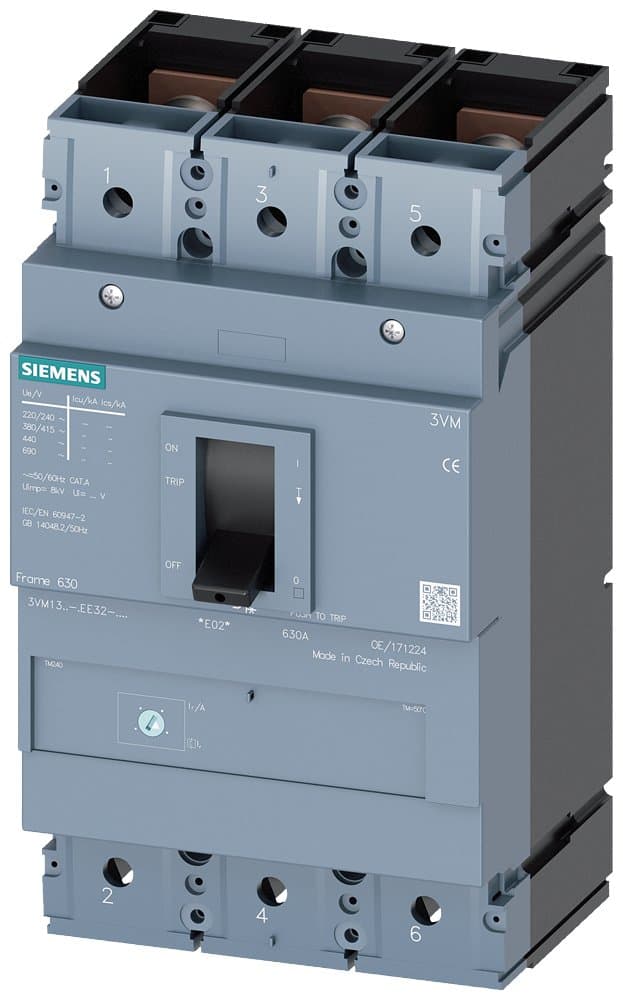

3VM1340-5EE32-0AA0
Selling Points
- 1High breaking capacity of 55kA @ 415V for reliable power interruption.
- 2Advanced line protection with TM220 and ATFM for enhanced safety.
- 3Overload protection up to 400A for continuous monitoring and control.
- 4Short-circuit protection from 280A to 400A for immediate response.
- 5Compact design with IEC frame 400 for easy installation and integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 41 | Rated Voltage(V): | 415 |
Number of Poles: | 3P | Description | 3VM1M400 R400 TM220 F/3P; Size 400; Rated Current 400A; Interrupting M:55kA; Trip Unit TM220; |
Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM220【L adjustable, I fixed】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
Rated Current In(A): | 400 | Specifications: | 400【250-400A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VM1340-5EE32-0AA0 |
Specifications may be subject to change without notice
