Product Model

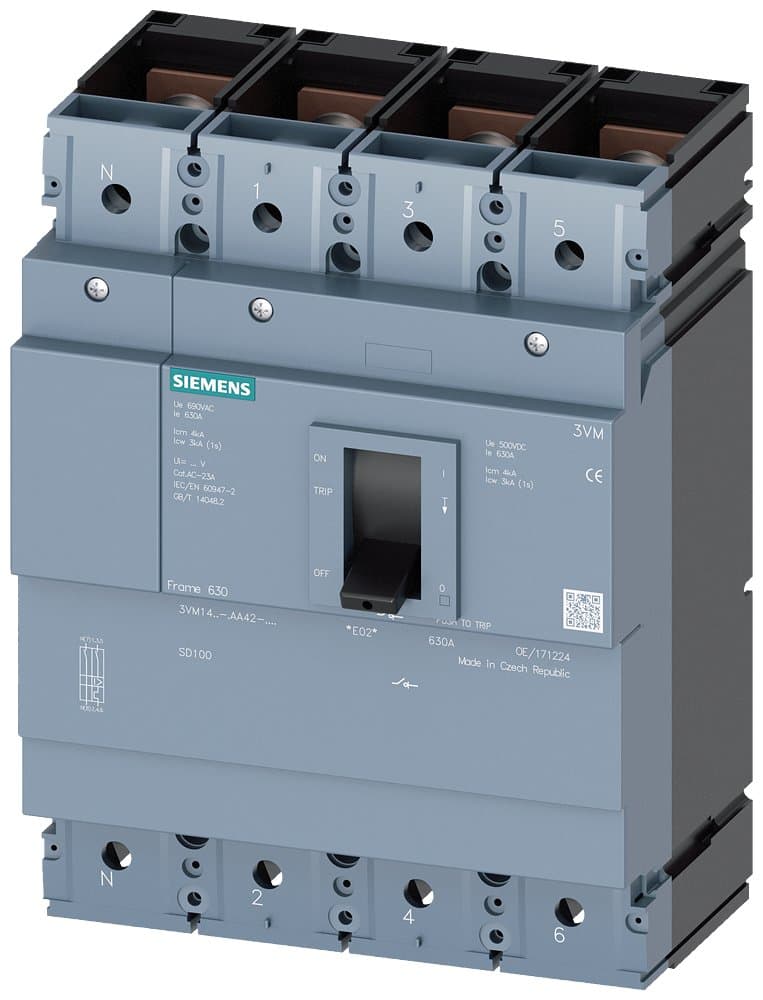

3VM1450-1AA42-0AA0
Selling Points
- 1Reliable Line Protection: Provides comprehensive protection against overloads and short circuits.
- 2Thermal-Magnetic Trip Units: Ensures economical and cost-efficient installations with thermal-magnetic principle trip units.
- 3Modular Accessories: Offers a wide range of internal accessories for quick and easy installation across all sizes.
- 4Compact Design: Features a mounting depth of 70 mm and a cover size of 45 mm for space-efficient installations.
- 5Universal Compatibility: Compatible with various electrical applications including AC/DC networks and 400 Hz applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Voltage(V): | 415 | Number of Poles: | 4P |
Description | 3VM1B630 R500 SD100 F/4P; Size 630; Rated Current 500A; Breaking B: 16kA; Trip Unit SD100; | Mounting Method: | F: Fixed |
Trip Unit: (If required is not in the list, reset and select trip unit first) | SD100【Isolator Switch】 | Breaking Rating: | (Isolation) |
Rated Current In(A): | 500 | Specifications: | 630【400-630A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3VM1450-1AA42-0AA0 |
Specifications may be subject to change without notice
