Product Model

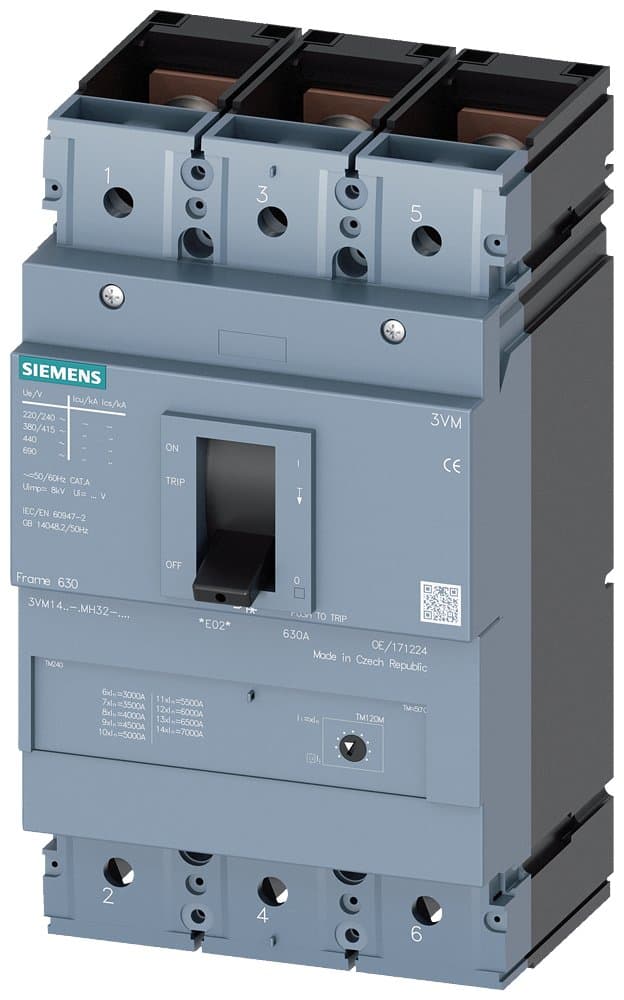

3VM1450-5MH32-0AA0
Selling Points
- 1High Breaking Capacity: 55 kA at 415 V for reliable short-circuit protection.
- 2Starter Protection: Equipped with TM120M for comprehensive starter protection.
- 3Compact Design: Ideal for various applications with a compact frame size.
- 4Versatile Installation: Available in plug-in technology and DIN rail adapter for easy installation.
- 5Proven Quality: Siemens' reputation for reliable and durable electrical components.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 41 | Rated Voltage(V): | 415 |
Number of Poles: | 3P | Description | 3VM1M630 R500 TM120M F/3P; Size 630; Rated Current 500A; Interrupting M:55kA; Trip Unit TM120M; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM120M【Single Magnetic (I adjustable)】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
Rated Current In(A): | 500 | Specifications: | 630【400-630A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VM1450-5MH32-0AA0 |
Specifications may be subject to change without notice
