Product Model

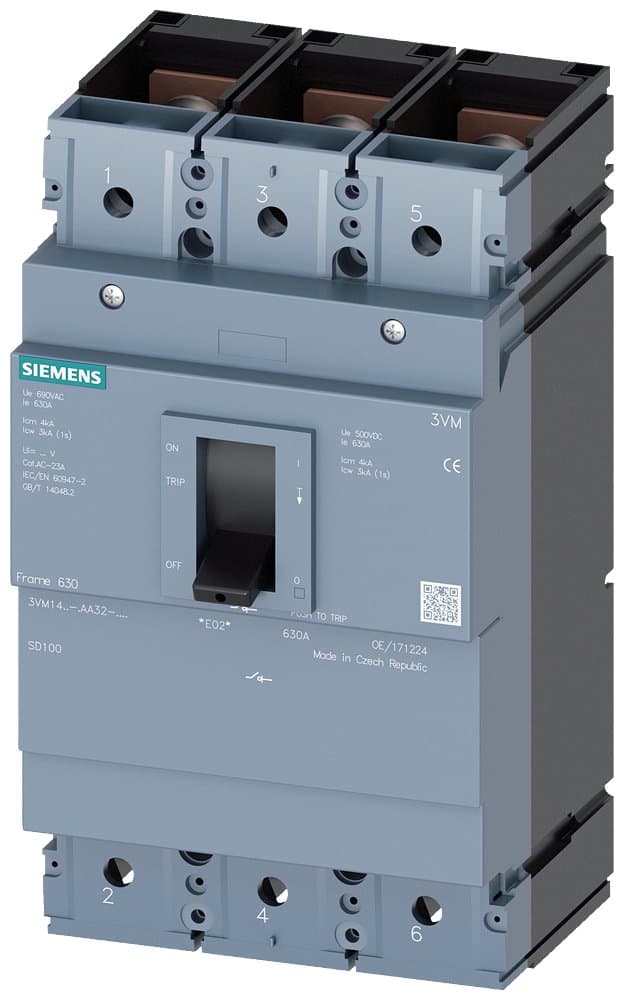

3VM1463-1AA32-0AA0
Selling Points
- 1High Current Rating: Handles up to 630A without overload protection.
- 2IEC Frame 630: Meets international standards for electrical safety and performance.
- 33-Pole Design: Suitable for various industrial applications requiring three-phase power distribution.
- 4No Overload Protection: Ideal for applications where overload protection is not required.
- 5Compact Design: Compact dimensions (W x H x D) make it easy to integrate into control panels.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Voltage(V): | 415 | Number of Poles: | 3P |
Description | 3VM1B630 R630 SD100 F/3P; Size 630; Rated Current 630A; Breaking B: 16kA; Trip Unit SD100; | Mounting Method: | F: Fixed Type |
Trip Unit: (If required is not in the list, reset and select trip unit first) | SD100【Isolator Switch】 | Breaking Rating: | (Isolation) |
Rated Current In(A): | 630 | Specifications: | 630【400-630A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3VM1463-1AA32-0AA0 |
Specifications may be subject to change without notice
